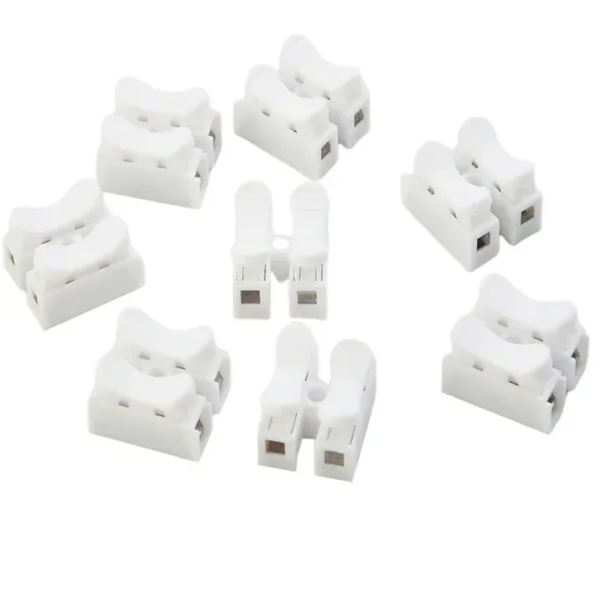

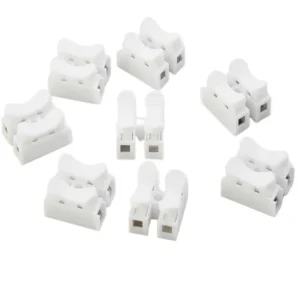

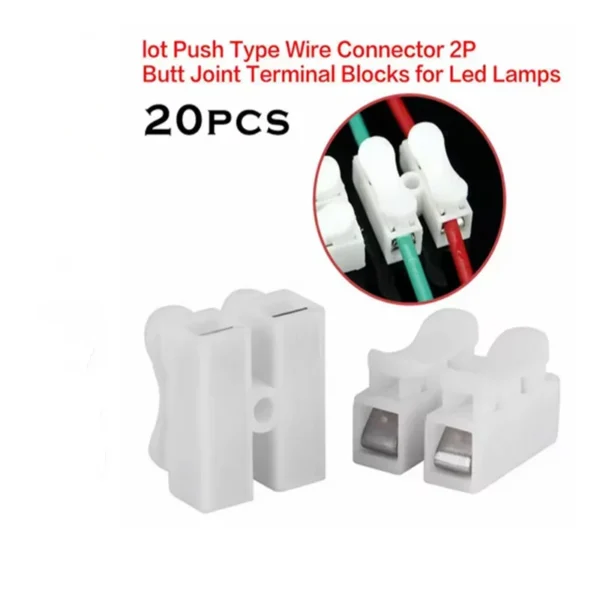

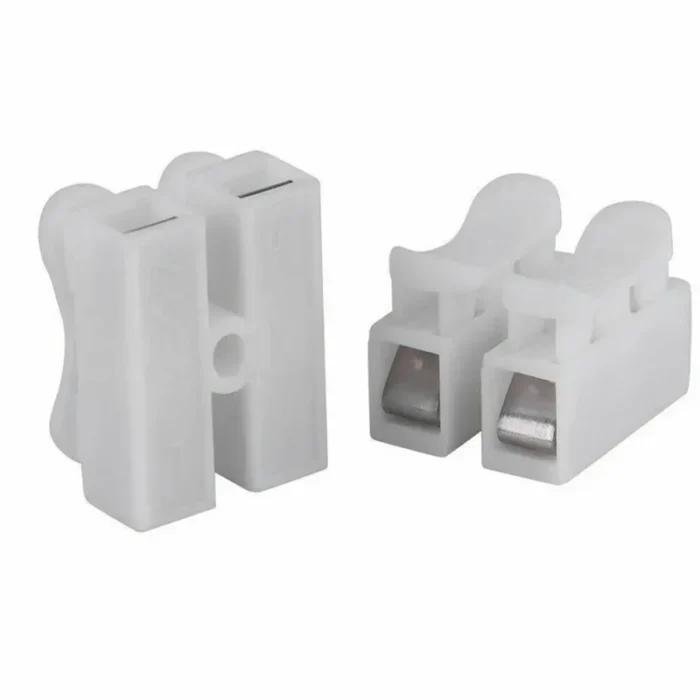

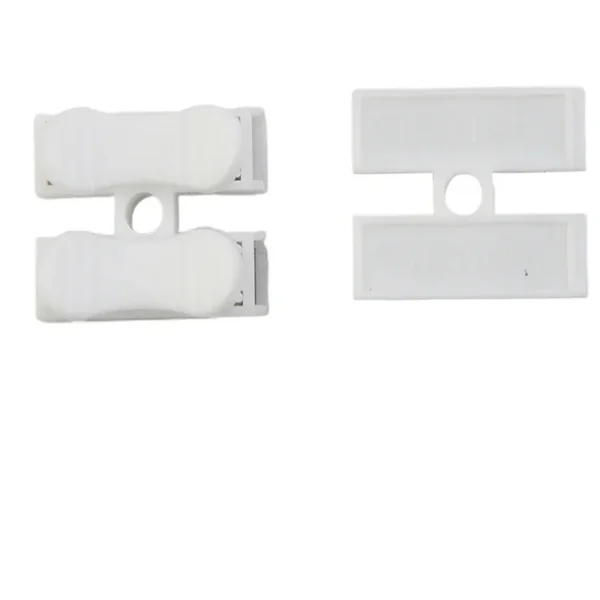

20pcs CH2 Spring Quick Wire Connectors Cable Clamps Terminal Block LED Strip Light Replace Electrical Tapes Cable Clamp Tools

Product description:

Made of high-quality materials, durable

Quick connection in second

Fast, efficient and safe

No screws, increase assembly speed

Can completely replace electrical tape

cut costs

They are often used as an alternative to terminal strips or conductor soldering because they are faster to install and, unlike soldered connections, they can be easily removed for future modifications

Please use it within the rated range of 220V, 1A. In the connection between the load and the wire, the safe use of this product is within 300W, please do not connect high-power electrical equipment

A crimp connector is an electrical connector used to fix two or more low-voltage (or ultra-low voltage) electrical conductors. They are widely used in the power wiring of residential, commercial and industrial buildings in North America

Compatibility: 20-12 AWG, support flexible wire, hard wire, single wire and multi-strand silicone wire

Complete the wire connection in three steps (without screw fixation):

1. Press the spring clip

2. Insert the wires (please connect + and-correctly)

3. Loosen the crimping clamp

Product parameters:

color: White

Model: CH2

Type: Terminal

Working frequency: high frequency

Scope of application: LED

Interface type: DIN

Shape: Bar

Stripping length: 2mm/0.079 inch

Production process: injection molding

Features: fire-resistant/flame retardant

Contact material: steel

Insulation material: PP

Number of cores: 2

Pin number: 2

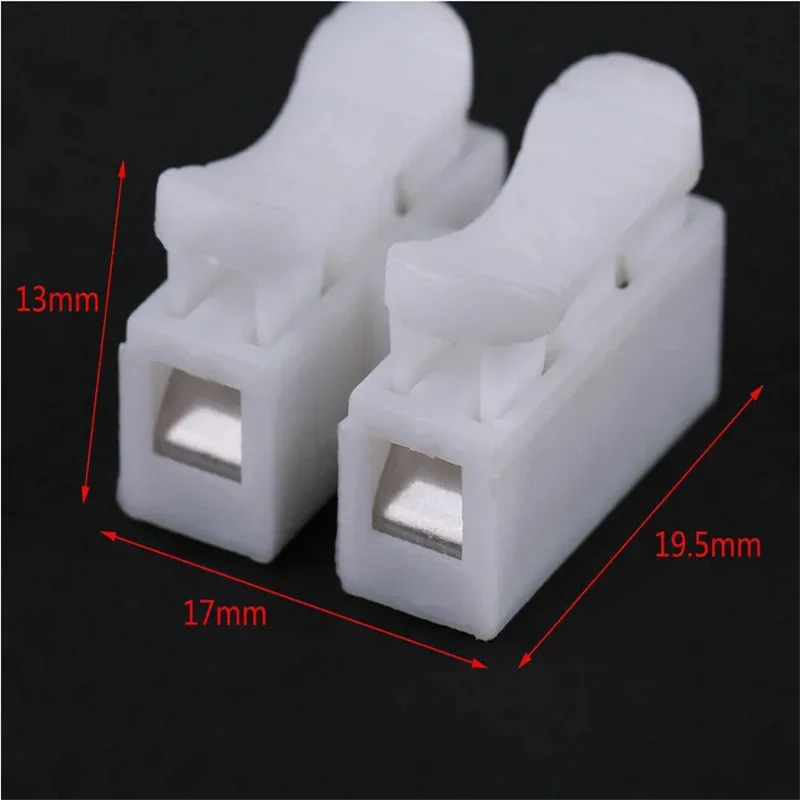

Single size: 19.5 * 17 * 13mm / 0.77 * 0.67 * 0.51inch

Package Included:

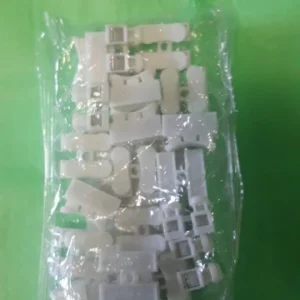

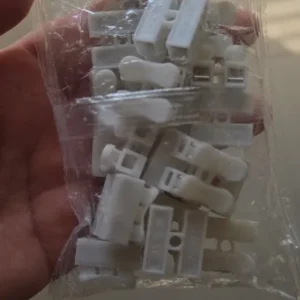

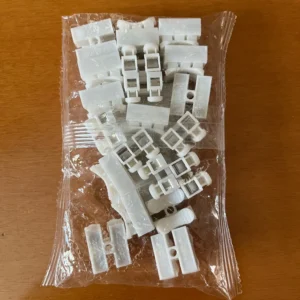

20 *CH2 spring connector

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
