2-In-1 M.2 SSD To SATA3 External Enclosure – Dual-Use NGFF/MSATA To Serial Port Conversion Adapter For Solid-State Drive

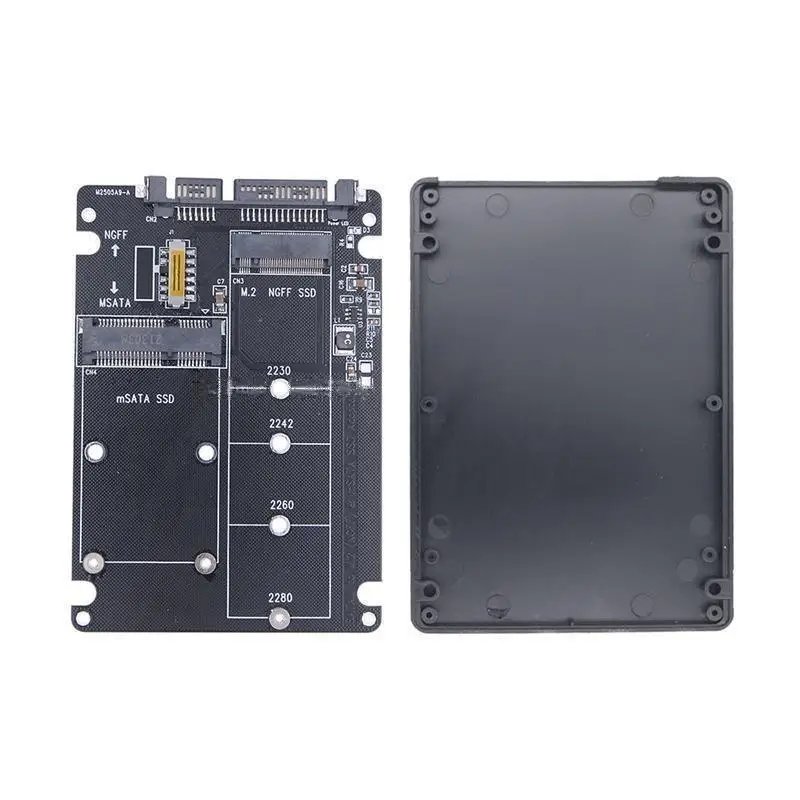

M.2 (NGFF) & mSATA 2-in-1 to SATA 3 Hard Drive Enclosure

Notes

Two SSDs can be inserted simultaneously, but only one can be recognized at a time. You need to toggle the switch to the corresponding position.

For the NGFF Portion

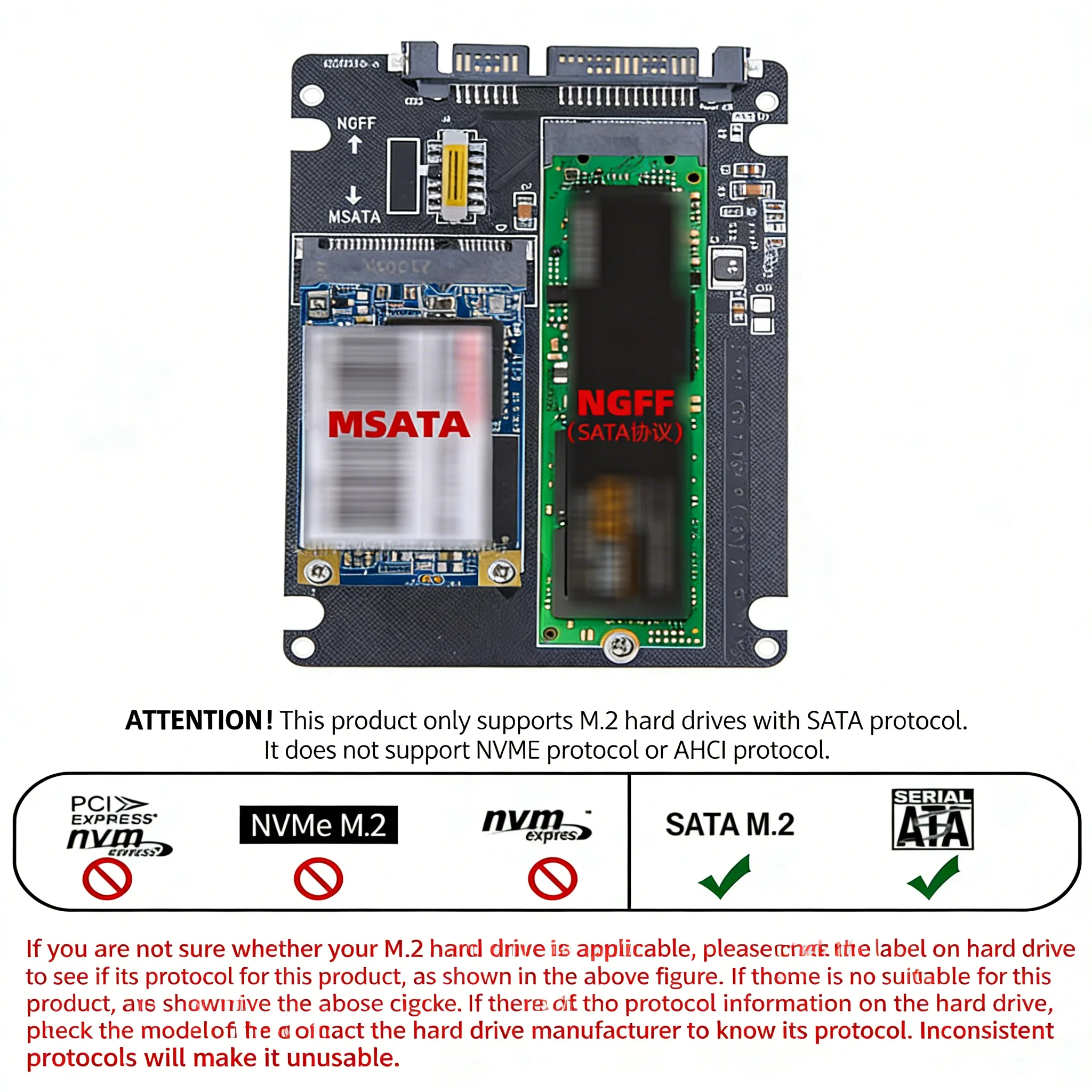

This adapter only works with B-key or B/M-key interfaces, and is incompatible with M-key interfaces. It does not support hard disks that use AHCI or NVMe protocols; only M.2 hard disks that comply with the SATA protocol (for NGFF) are supported.

Key Features

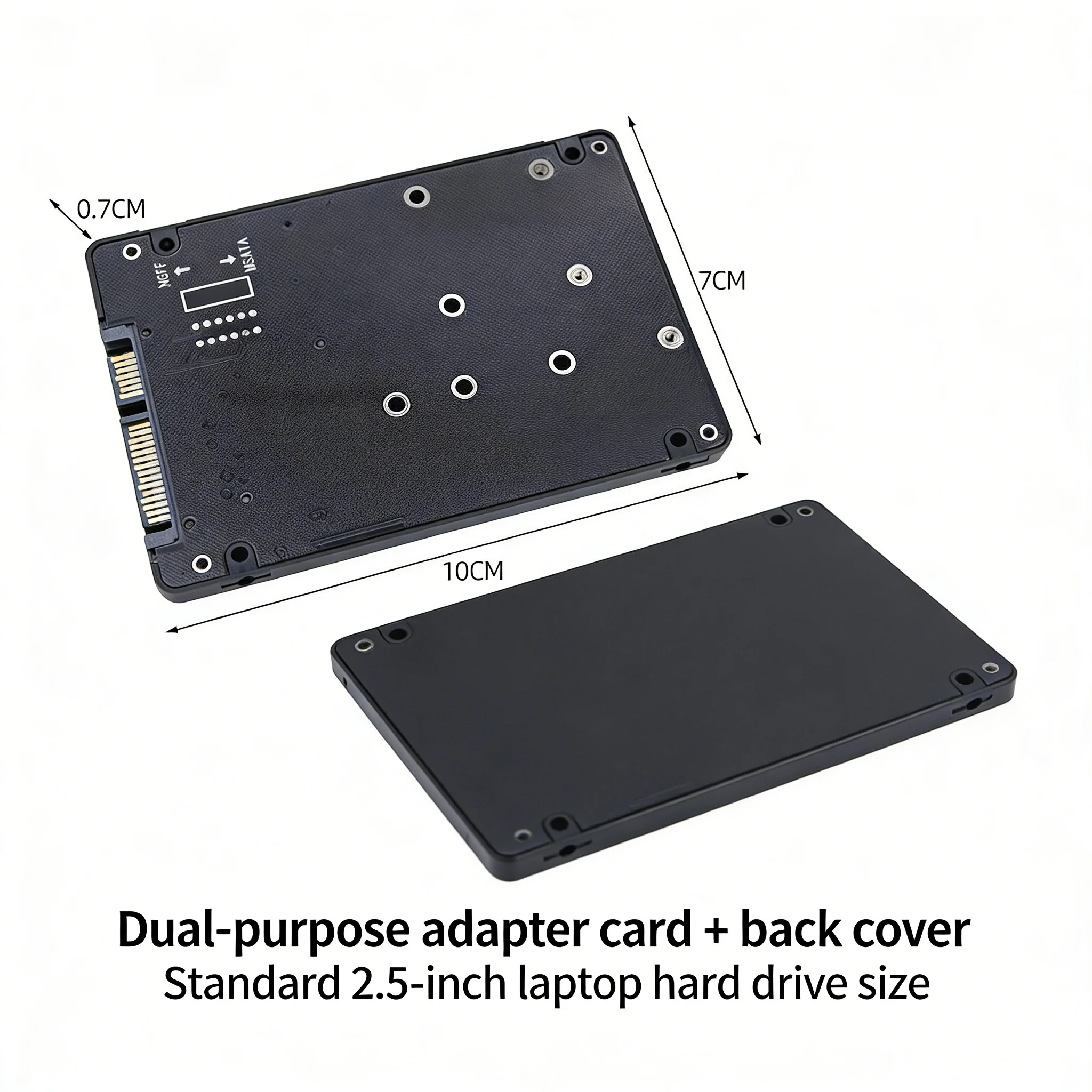

Supports converting M.2 NGFF or mSATA SSDs for use as SATA 2.5"/3.5" hard disks.

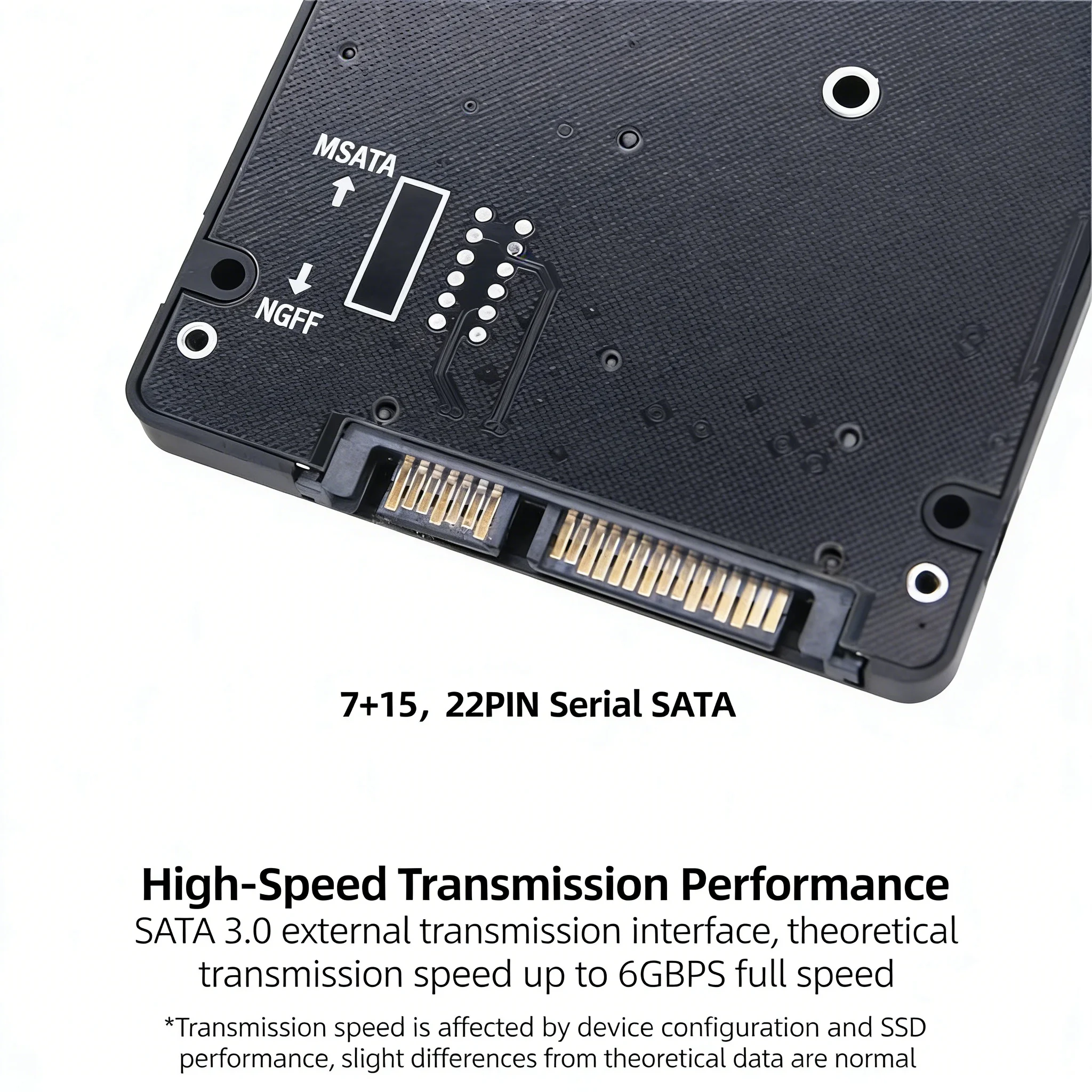

Fully compatible with the SATA 3.1 standard.

Compatible with the PCI Express M.2 protocol.

The NGFF and mSATA SSDs allow an input voltage of 3.3V with a maximum current of 3A. This adapter has no built-in chip, so there is no specific data transfer rate attributed to the adapter itself. It only serves as a conversion interface, and the actual transfer speed depends solely on the SSD used.

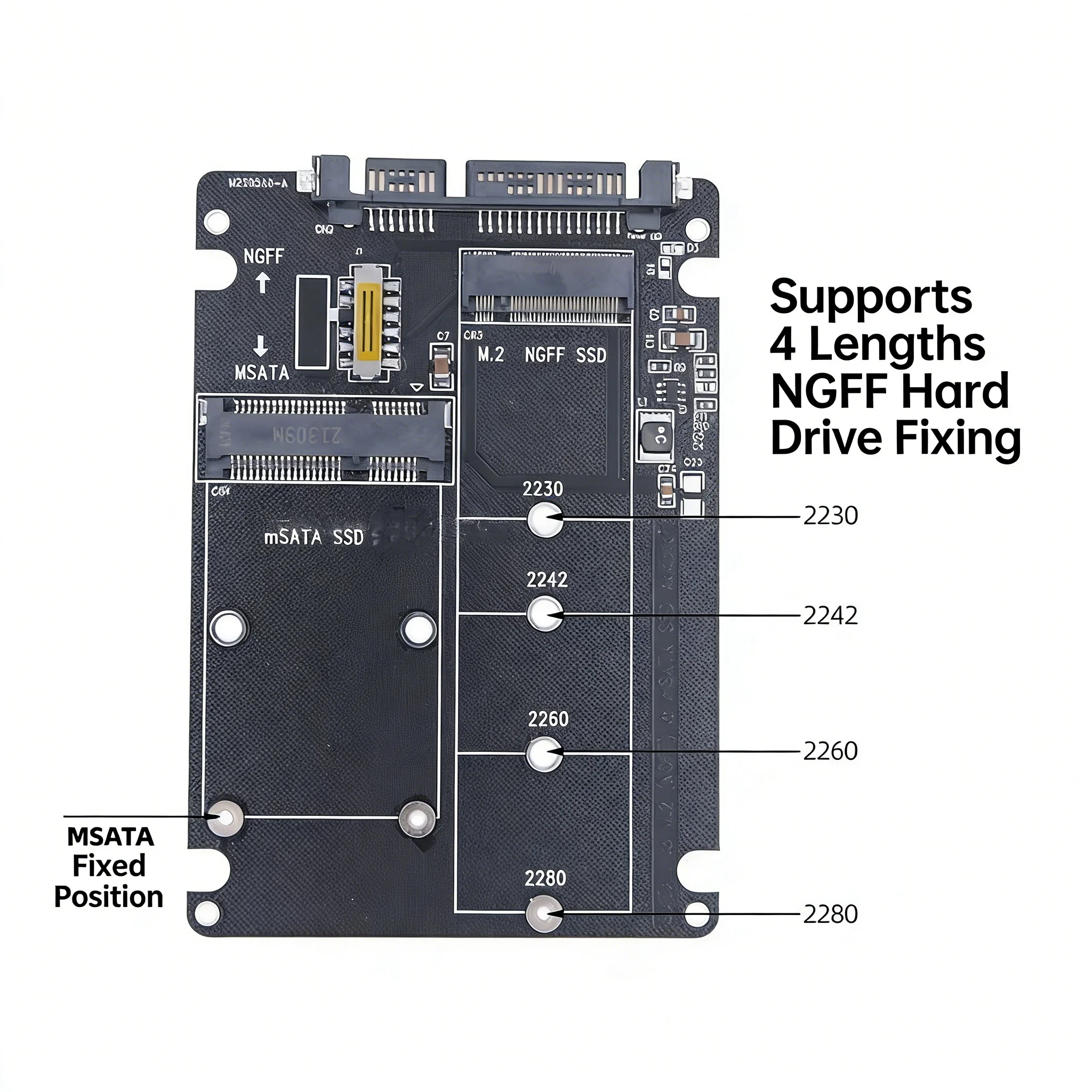

Supports M.2 NGFF SSDs in sizes of 80mm, 60mm, 42mm and 30mm.

Supports both full-height and half-height mSATA SSDs.

Toggle Switch Design

Toggle the switch upwards for NGFF mode.

Toggle the switch downwards for mSATA mode.
